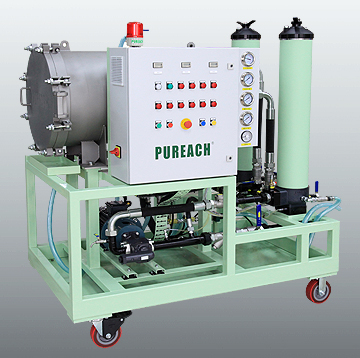

CP Series Oil C&S Purifier

Use : Lubricant, Hydraulic oil,etc.Remove emulsion, free water and particles to ensure the oil quality.
Content :
CP Series Oil C&S Purifier has two functions which are high performance dehydration (Coalescing & Separating) and high precision filtration.

Remove emulsion, free water and particles to ensure the oil quality.

Pre-processed oil is pumped into high performance filter to remove particles after passing suction filter.

- Combining by dehydration and filtration.

- Cleanliness of oil can be NAS 5 and water can be as low as 100ppm.

- Various capacity is available.

- Low power consumption; long service life; low operating cost.

- Easy of operation and maintenance

Specification

Filtration Process

Ordering Information

Model	CP50	CP100	CP150	CP200	CP400
Net Weight ( kg )	350	550	580	850	2400
Overall Dimension(mm)	1,463 * 790 * 1,723	1,715 * 920 * 1,800	1,715 * 980 * 1,760	2,010 * 1,050 * 1,790	2,6552,3401,860
Flow Rate ( L/min )	50	100	150	200	400
Total Power ( kW )	1.5	3	4	5.5	60 + 5.5x2
Compatible Fluid	Lubricant, Hydraulic oil , etc.
Maximum Viscosity( cSt )	< 46
Inlet / Outlet	Inlet: M64 x 2 External thread Outlet: M52 x 2 External thread			Inlet: M85 x 2 External thread Outlet: M64 x 2 External thread	Inlet: DN80 Outlet: DN80
Temperature Range(℃ )	20 to 70
Inlet Pressure ( barg )	- 0.4 to 4.0
Pump Outlet Maximum Pressure ( barg )	7

The oil / liquid mixture enters the coalescing element and flows inside to outside. This is where small liquid droplets suspended in the continuous phase come together, or coalesce the large droplets through proprietary coalesce medium to be dropped into the water collector under the gravity. The separator medium is hydrophobic preventing the small aqueous droplets of the mixture entering the separator. Only oil fluid can flow through the separator to be removed from outlet.

Please consult Pureach? sales or local dealers.
