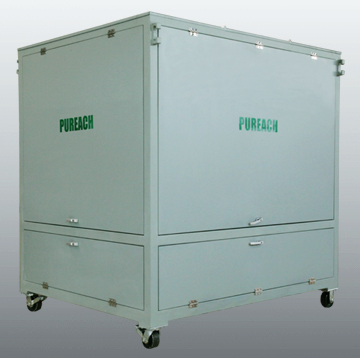

EP Series High Vacuum Purifier

Use : Applies to electric insulating oil which is used for electric transformer higher than 110kV and purifying insulating oil.
Content :
EP series high vacuum purifier applies to electric insulating oil which is used for electric transformer higher than 110kV and purifying insulating oil.

Effectively remove water, gas and contaminant in oil to ensure the high voltage resistance, quality of insulating oil and high-voltage electrical equipment in safe.

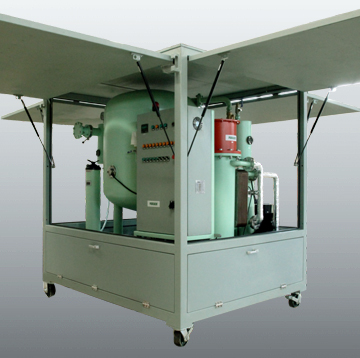

EP double-stage vacuum purifier is consist of mobile device, oil pump unit, vacuum, electrical heating, test and automatic control systems.
? Double-stage design to ensure high vacuum.
? The heater adopts plate-type heat exchanger with indirect circulation heating technology.
? Combined film evaporation and spray drying efficiently remove water and gas.
? Oil level control of vacuum tower and Infra Red (IR) foam probing.
? Single high-performance filter; High precision; High contaminant holding capacity.
? Easy operation and maintenance.
? Remaining water is less than 5 ppm and remaining gas is less than 0.1%.

Specification


Ordering Information

Model	EP50	EP100	EP150	EP200

Flow Rate ( L/min )	50	100	150	200
Pumping Speed（ m3/min ）	9	18	36	36
Total Power ( kW )	≤ 70	≤ 110	≤ 140	≤ 170
Heating Power ( kW )	60	90	90	120
Compatible Fluid	Insulating oil
Temperature Range ( °C )	20 to 80
Inlet / Outlet	DN32	DN40	DN50 / DN40	DN65 / DN50
Ultimate Vacuum / Working Vacuum ( Pa )	< 5 / < 50

Please consult Pureach? sales or local dealers.
